Natural Oil and Gas SSAW ERW Line Pipe API 5L Oil Pipeline X42 X52 Drill Rod Welded Steel Tubes in Drilling Equipment

Basic Info

Model NO.	SSAW PIPE
After-sales Service	3 Years
Warranty	3 Years
Type	Welded
Technique	SAW
Material	Carbon Steel
Surface Treatment	Black
Usage	Pipeline Transport, Boiler Pipe, Hydraulic/Automobile Pipe, Oil/Gas Drilling, Machinery Industry, Mining, Construction & Decoration
Section Shape	Round
Product	Welded Steel Pipe
Standard	ASTM, API 5L, GB, etc.
Certificate	ISO CE TUV SGS
MOQ	5 Tons, 20FT Container Will Be Better
Surface	Bare or Painted
Transport Package	Standard Seaworthy
Specification	12000250010mm
Trademark	ZHUOSHENG
Origin	China
HS Code	85153191
Production Capacity	50000 Tons Per Month

Product Description

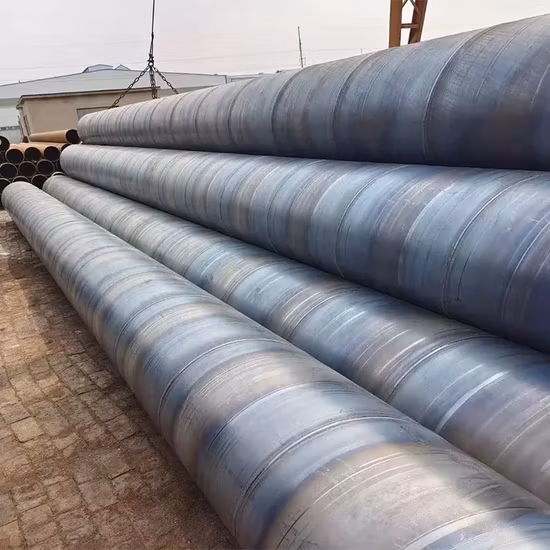

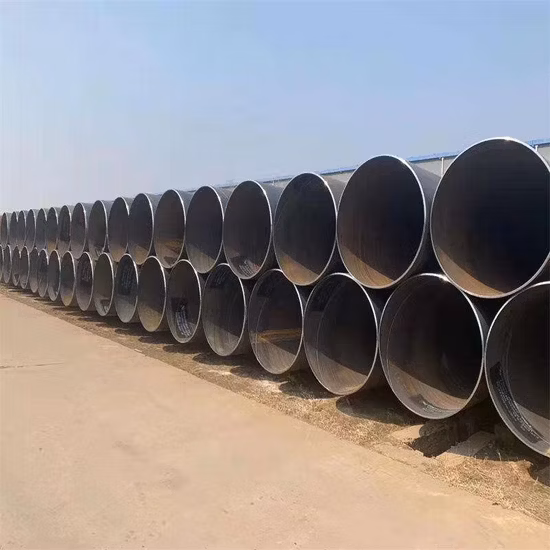

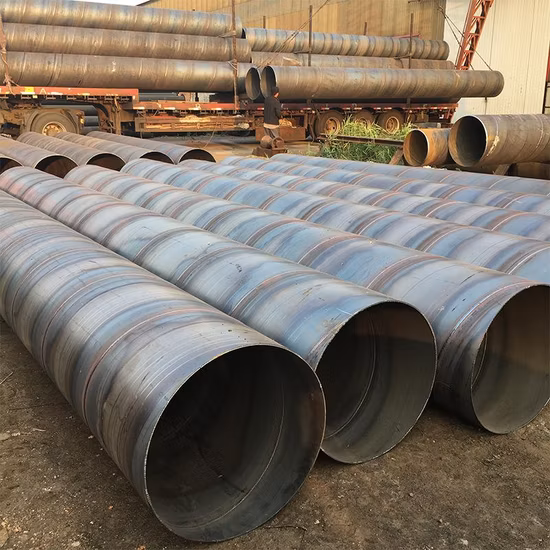

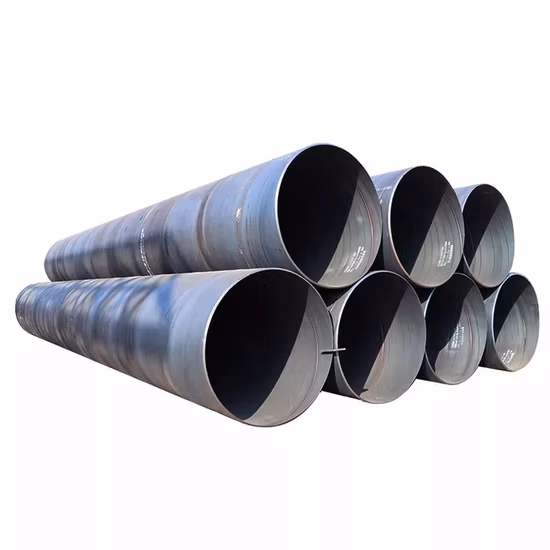

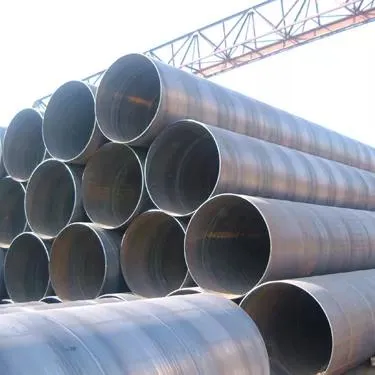

Natural Oil and Gas SSAW ERW Line Pipe API 5L Oil Pipeline X42 X52 Drill Rod Welded Steel Tubes in Drilling Equipment

Welded steel pipe is created using a flat steel plate or steel strip, and its manufacturing process results in a seam on its body. Specifically, when a welded steel pipe is manufactured, a steel plate or strip is bent and subsequently welded into either a circular, traditional pipe shape or a square shape. LSAW pipe, SSAW pipe, and ERW pipe are all types of welded steel pipe that are categorized based on how they are welded. For instance, LSAW pipe is welded longitudinally, and SSAW pipe is spiral-welded. ERW pipe is electric resistance welded, which results in a seam that runs parallel along the pipe body.

No matter the type of welded steel pipe, production is quick and efficient and costs less than the production of alternatives like seamless steel pipe. Overall, welded steel pipe is an affordable, adaptable choice and can be used for a number of different purposes.

Natural Oil and Gas SSAW ERW Line Pipe API 5L Oil Pipeline X42 X52 Drill Rod Welded Steel Tubes in Drilling Equipment

Product Parameters

Welded Pipe
Material	ASTM A106A,ASTM A106B,ASTM A106C,ASTM A179,ASTM A192,ASTM A210
	ASTM A53A,ASTM A53B,ASTM A178C
	10#,20#,45#,Q235,Q345,Q195,Q215,Q345C,Q345A
	ST37,ST37-2,DIN 1629 ST35,DIN 1629 ST45,DIN 17175 ST35.8,DIN 17175
	DIN 17175 19Mn5
	16Mn,Q345B,T1,T2,T5,T9,T11,T12,T22,T91,T92,P1,P2,P5,P9,
	P11,P12,P22,P91,P92,15CrMO,Cr5Mo,10CrMo910,12CrMo,
	13CrMo44,30CrMo, A333 GR.1, GR.3, GR.6, GR.7, etc
	Gr.B,X42,X46,X52,X60,X65,X70,X80,X100,etc
Dimensions	Out diameter: 6mm~720mm
	Wall Thickness: 0.25mm~200mm
	Length:1m~12m or customize
Surface treatment	Black painting, black varnish, transparent oil, hot galvanized,
	3PE, epoxy, coating, BE, PE, etc
Application	1. Low and middle-pressure fluid transportation pipeline
	2. Casing pipe
	3. Low and medium-pressure boiler seamless steel pipe
	4. High-pressure boiler seamless steel pipe
	5. Carbon seamless steel pipe for ship
	6. Seamless steel pipe used in high-pressure chemical fertilizer equipment
	7. Petroleum and natural gas industry
	8. Steel pipe for Heat exchanger
	9. Used for diesel engine
	10. Chemical industry building industry, environment industry, etc

INCH	OD	Standard Wall Thickness
	(MM)	SCH 10	SCH 20	SCH 40	SCH 60	SCH 80	SCH 100	SCH 160
		(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)
8"	219.1	3.76	6.35	8.18	10.31	12.70	15.09	23.01
10"	273	4.19	6.35	9.27	12.7	15.09	18.26	28.58
12"	323.8	4.57	6.35	10.31	14.27	17.48	21.44	33.32
14"	355	6.35	7.92	11.13	15.09	19.05	23.83	36.71
16"	406	6.35	7.92	12.70	16.66	21.44	26.19	40.49
18"	457	6.35	7.92	14.27	19.05	23.83	29.36	46.24
20"	508	6.35	9.53	15.09	20.62	26.19	32.54	50.01
22"	559	6.35	9.53		22.23	28.58	34.93	54.98
24"	610	6.35	9.53	17.48	24.61	30.96	38.89	59.54
26"	660	7.92	12.7
28"	711	7.92	12.7
30"	762	7.92	12.7
32"	813	7.92	12.7	17.48
34"	863	7.92	12.7	17.48
36"	914	7.92	12.7	19.05
